Choosing a Weld-On Trailer Hinge for Your Project
A door that sags, catches or no longer closes squarely can make a trailer awkward to use. Replacing the hinge may be part of the answer, but the hinge is only one piece of the assembly. The frame, door and attachment points need attention too.
The Sidco Supply WTH-5x3 is a weld-on strap hinge listed for trailer and truck applications. Its supplier specifications name alloy steel construction and an electroplated finish. That gives you a starting point for comparison, not a complete installation plan.
Before buying, focus on fit, loading and the condition of the metal that will hold it. This record also has conflicting size and weight entries. Resolve those details before cutting, welding or committing to a replacement layout.
What a weld-on strap hinge does
A hinge lets a door or panel turn around a pivot while remaining connected to its frame. A strap leaf hinge has a plate that forms part of that connection. Its shape and mounting position affect where the moving panel sits and how it clears nearby surfaces.
This model uses weld-on mounting. It is intended for a welded connection, rather than a mounting method based only on removable fasteners. That can suit a metalwork project where the installer has access to suitable base material.
Welding does not make the whole assembly safe by itself. A sound connection depends on the hinge material, the surrounding metal, the joint design and the work carried out. The frame must be able to support the forces passed through it.
Start with the job, not the label
The phrase heavy duty strap hinge is useful when searching, but it is not a load rating. This listing does not give a working load, tested capacity or approved hinge spacing.
Think about what the panel will do in use. A small access door and a large trailer tailgate can place very different demands on their hinges. Movement, vibration and the way the panel is supported may all matter.

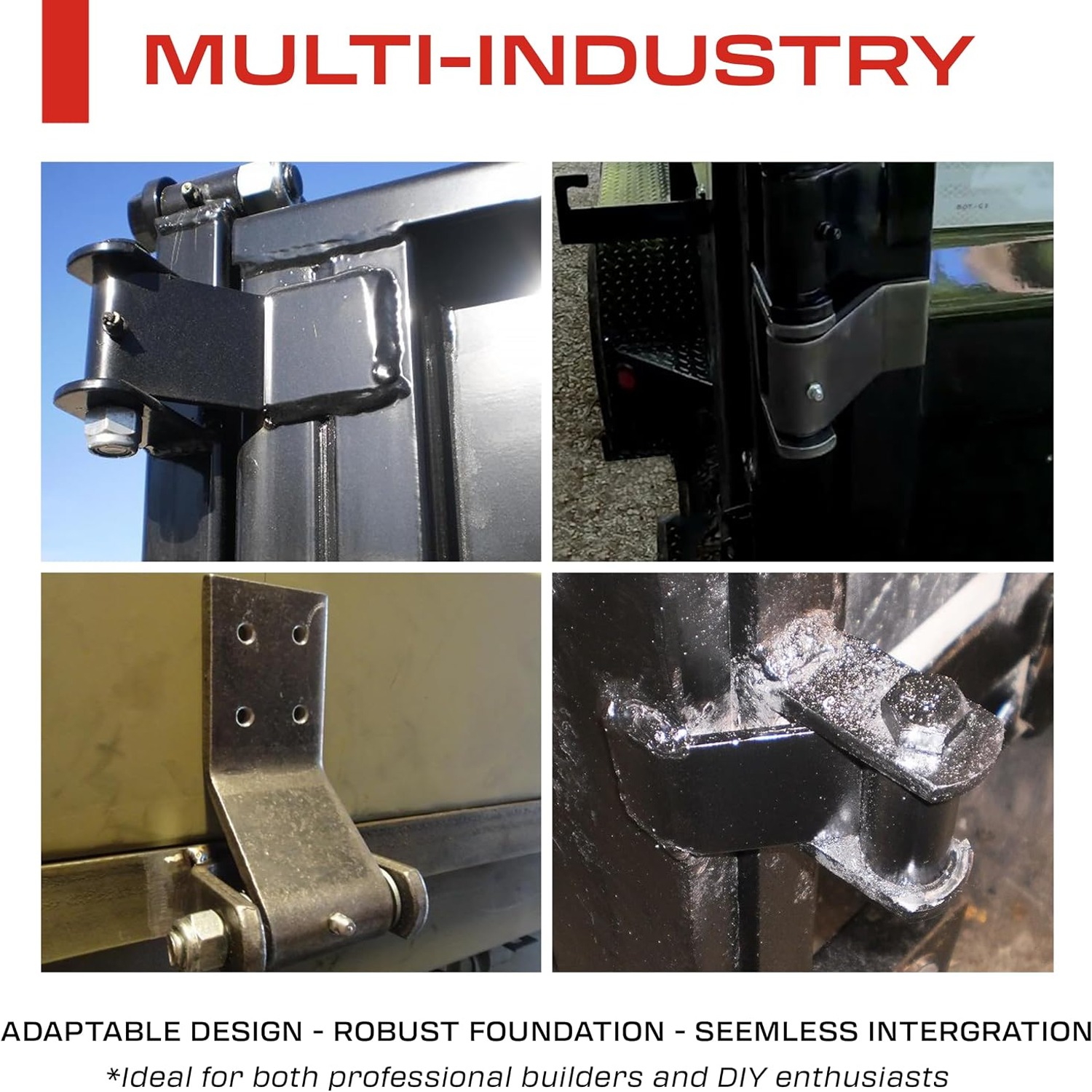

For a dump trailer hinge, ask a fabricator to assess the actual application. Do the same for a gate or truck body hinge. A product being listed for a broad use does not confirm that it suits every design within that group.
If a safe capacity is essential to your decision, seek verified information before buying. Do not try to calculate it from the product weight or the heavy duty description.
Resolve the size differences first

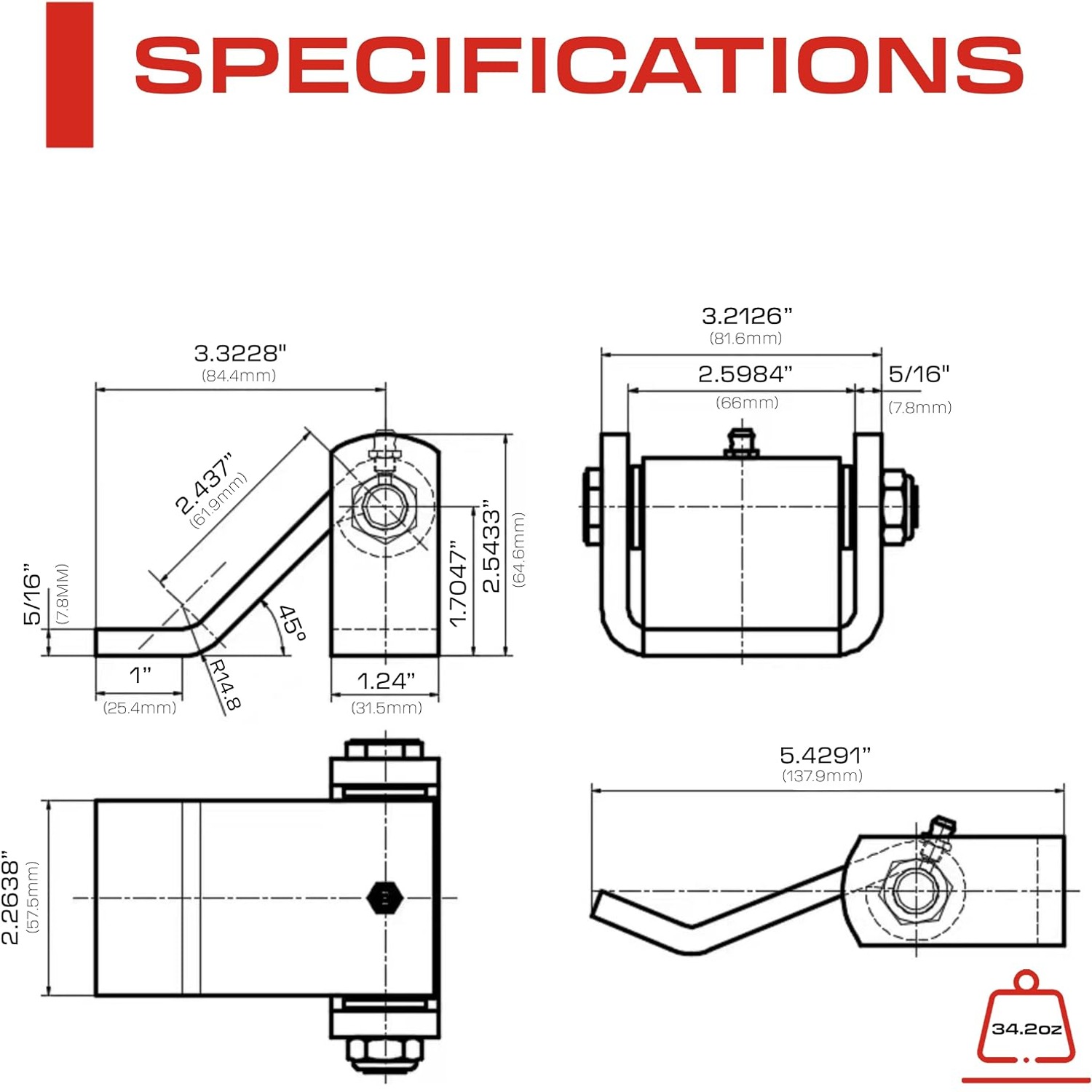

The product details list dimensions of 12.7 cm long by 7.6 cm wide. Separate supplier text gives overall measurements of 137.9 by 81.6 mm. Those figures differ, and this page cannot establish which is correct.

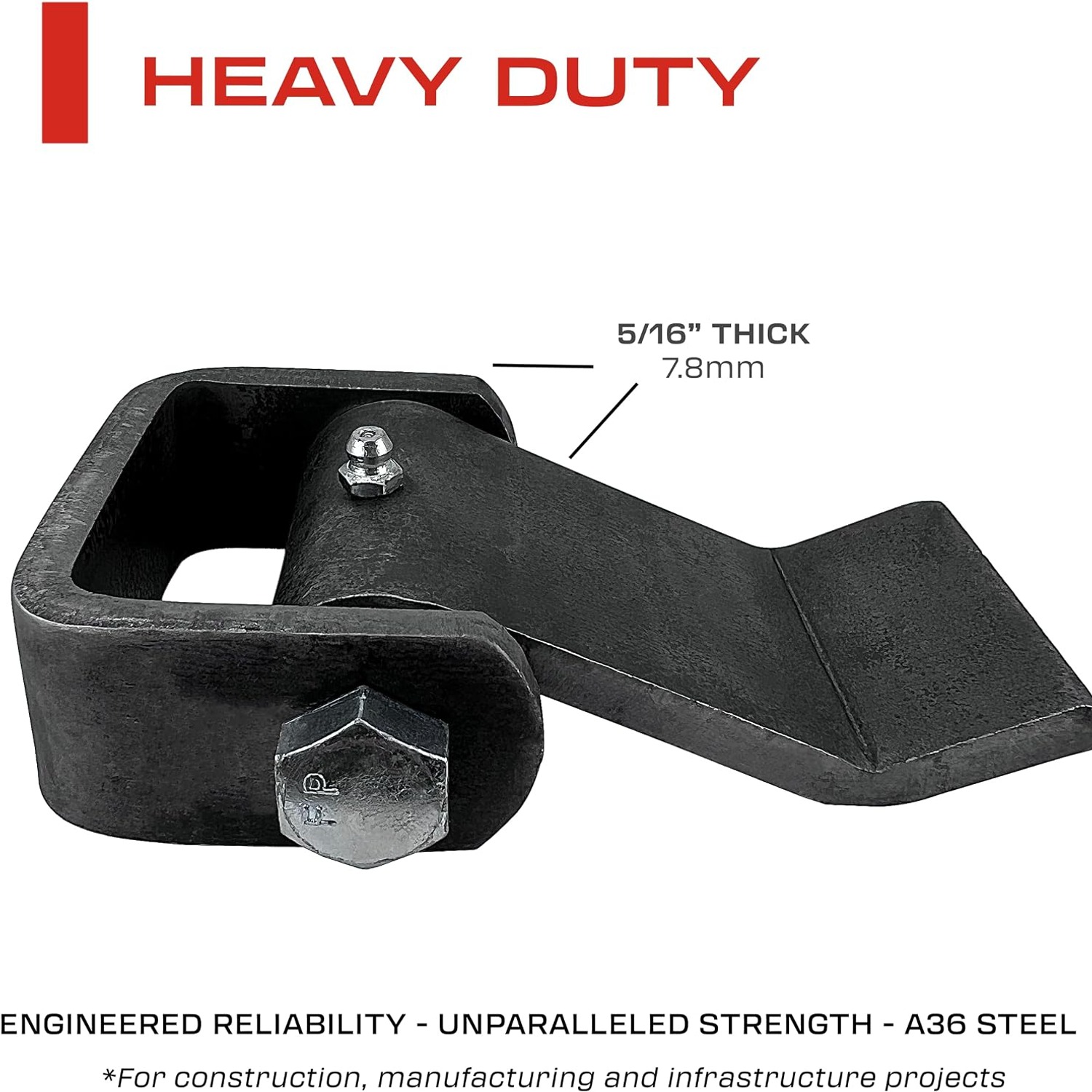

The same supplier text lists a plate thickness of 7.80 mm and strap plate dimensions of 84.4 by 57.5 mm. Treat these as details to confirm, not a reason to overlook the conflicting overall size.
Ask which points the measurements cover. Overall length, strap length and pivot position are different things. A hinge can appear close in size while placing the door in the wrong position.
This matters most when replacing an existing part. Even a modest difference can affect the gap around the door, the latch position or the room available for opening.
Measure the assembly as well as the old hinge
For a replacement trailer hinge, inspect the existing mounting area before using the old part as your only template. Wear, bent metal or earlier repairs may have changed its position.
Measure the available flat surfaces on both the door and frame. Note any nearby edges, seals, latches or trim. Your installer needs enough space for the hinge and for the work required to attach it.
Check where the pivot needs to sit. The panel must move without scraping the frame or striking adjacent parts. The listing does not specify an opening angle, so opening clearance needs a separate check.
Photos can help explain the layout to a seller or fabricator, but they are not a substitute for measurements. Keep a simple drawing with the important dimensions marked.
Confirm what arrives in the pack
The supplier record contains an entry reading “2 PCS”, but it appears in the color field. That is not a clear confirmation of package contents.
Ask how many hinges are supplied under this product listing. This is especially important if your project needs a matched set or if you are comparing prices between different sellers.
Weight also needs checking. The main record lists 2 kg, while separate supplier text gives 969.3 g. It does not explain whether either number refers to an individual hinge, a set or packaged goods.
Do not use those weight figures to infer quantity or strength. A direct answer about pack contents is more useful than an assumption based on a loosely labelled field.
Consider the material and finish
The supplier specifications identify this as an alloy steel hinge with an electroplated finish. The exact alloy grade and plating type are not given.
Those missing details matter when planning welding and surface preparation. A qualified welder should decide how to handle the coating and prepare the joint safely. This is not a job to approach by guessing from the appearance of the finish.
The electroplated finish also does not establish a weatherproof rating. If you need a steel gate hinge for an exposed location, discuss the environment and any further protection with your installer.
Coastal exposure, trapped moisture and damaged coatings deserve particular attention in a maintenance plan. No corrosion test results or coating life are supplied for this model.
Decide whether weld-on mounting is right
A weldable strap hinge makes sense only where the assembly is suited to a welded connection. Confirm the material of the door and frame before choosing the part.
The listing includes a hole count of one, but it does not describe a bolt-on mounting method. Do not assume that a visible hole makes the hinge suitable for fastening with a single bolt.
Weld-on work also changes how easily a part can be removed later. Think about future repairs, access and replacement before settling on the design.
If you need a removable pin or lift-off door, ask for confirmation. Pin construction is not listed by the maker. Choosing a hinge around an unconfirmed feature can leave you with a part that fits but does not work the way you need.
Plan installation with a qualified fabricator
A good installation begins with the full assembly supported and its intended position established. The fabricator should assess the door, frame and proposed hinge locations together.
Alignment matters because the hinges must work as one system. A panel that binds after fitting may place unwanted force on the hinge, welds or surrounding metal.
The welding process and joint details belong with a qualified person who can assess the actual materials. No welding procedure is supplied in the maker's listing.
For a road-going trailer, also have any relevant vehicle requirements checked. This product listing is not evidence of compliance for a particular vehicle or use.
Once installed, the assembly should be checked for movement, clearance and secure closing before normal service. A door should not need to be forced past a tight spot.
Look after the complete connection
Care is about more than keeping the visible hinge clean. Inspect the welds and the metal around them as well as the moving joint.

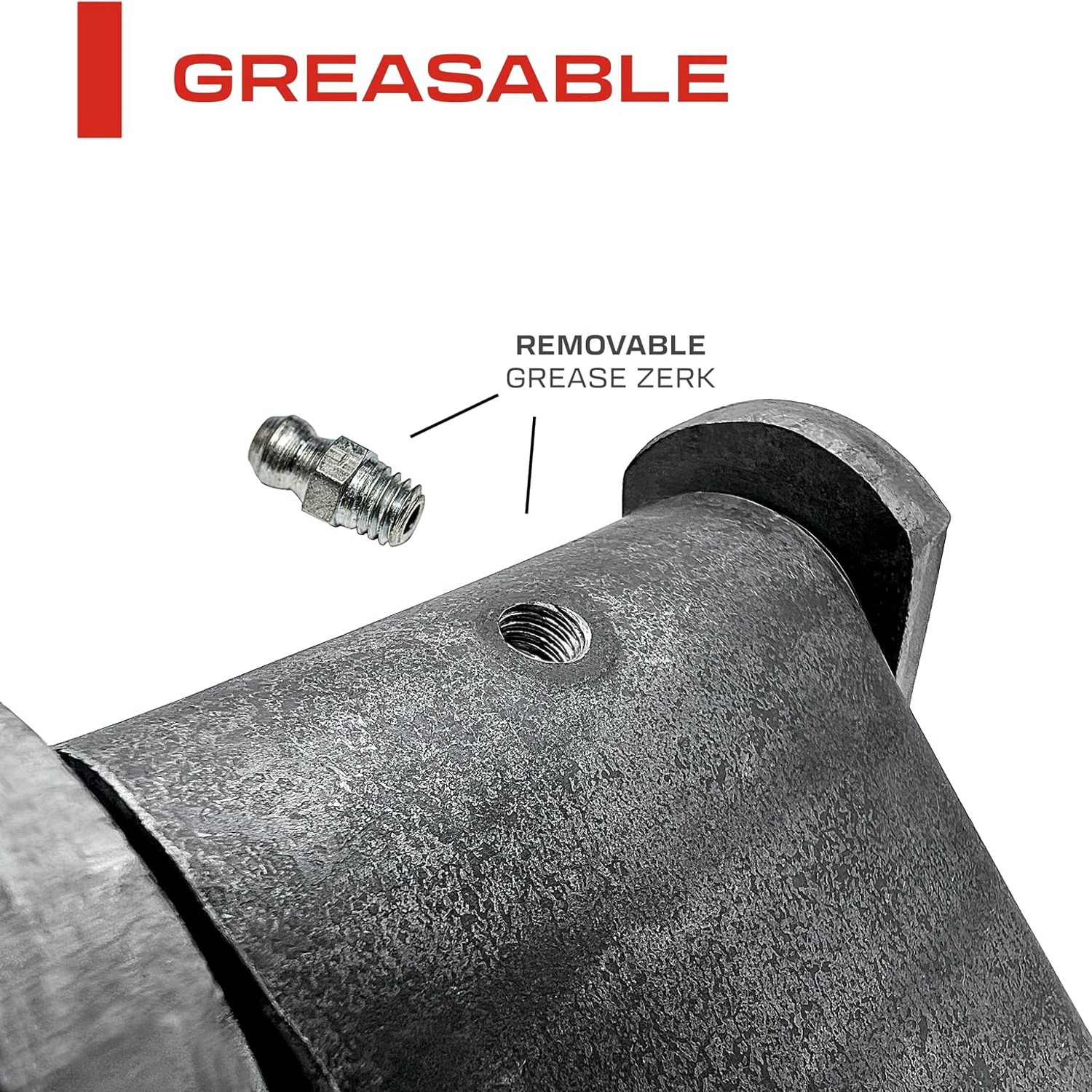

Remove dirt and debris before they build up around the pivot. Ask the installer which lubricant, if any, is suitable and how often the assembly should be checked. The supplier does not provide a maintenance schedule.
Watch for new stiffness, loose movement, cracking or corrosion. These changes deserve attention rather than a harder push on the door.
If the panel drops or stops lining up with its latch, stop using it until the cause is understood. Repeatedly forcing a misaligned door can hide a wider problem in the frame or attachment points.
Order with the unanswered questions settled
Keep the model reference WTH-5x3 handy when contacting the seller. Ask for confirmed dimensions, package quantity and any available load information.
Also check the expected delivery time for your location. The maker's listing marks the product as in stock, but no handling or transit period is supplied. Plan fabrication around a confirmed delivery estimate rather than an assumed arrival date.
Read the returns terms before making changes to the part. If it arrives and does not match your needs, leave it unwelded and unmodified while you contact us.
Product-specific warranty terms are not included in the maker's listing. Ask about them before purchase if they are important to your decision.
The short version
The Sidco Supply WTH-5x3 is a weld-on trailer hinge option with listed alloy steel construction and an electroplated finish. It is worth assessing for a suitable metal door, trailer or gate project.
The key checks come first. Confirm the conflicting dimensions, clarify the pack quantity and have a qualified fabricator assess the loads and mounting arrangement. With those questions answered, you can judge the hinge on fit and function rather than on its name alone.
